Overview
The filter reactor is used in the low-voltage filter cabinet, in series with the filter capacitor, tuned to a certain resonant frequency, used to absorb the harmonic current of the corresponding frequency in the grid. There are a large number of harmonic sources such as rectification, converter, and frequency conversion devices in the low-voltage power grid, and the high-order harmonics generated by them will seriously endanger the main operation and the safe operation of other electrical equipment in the system. After the filter reactor is connected in series with the capacitor, it not only can effectively absorb the harmonics of the power grid, but also improve the power factor of the system, which plays a big role in the safe operation of the system.

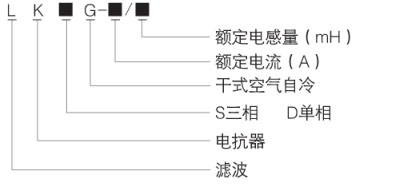

Model Meaning

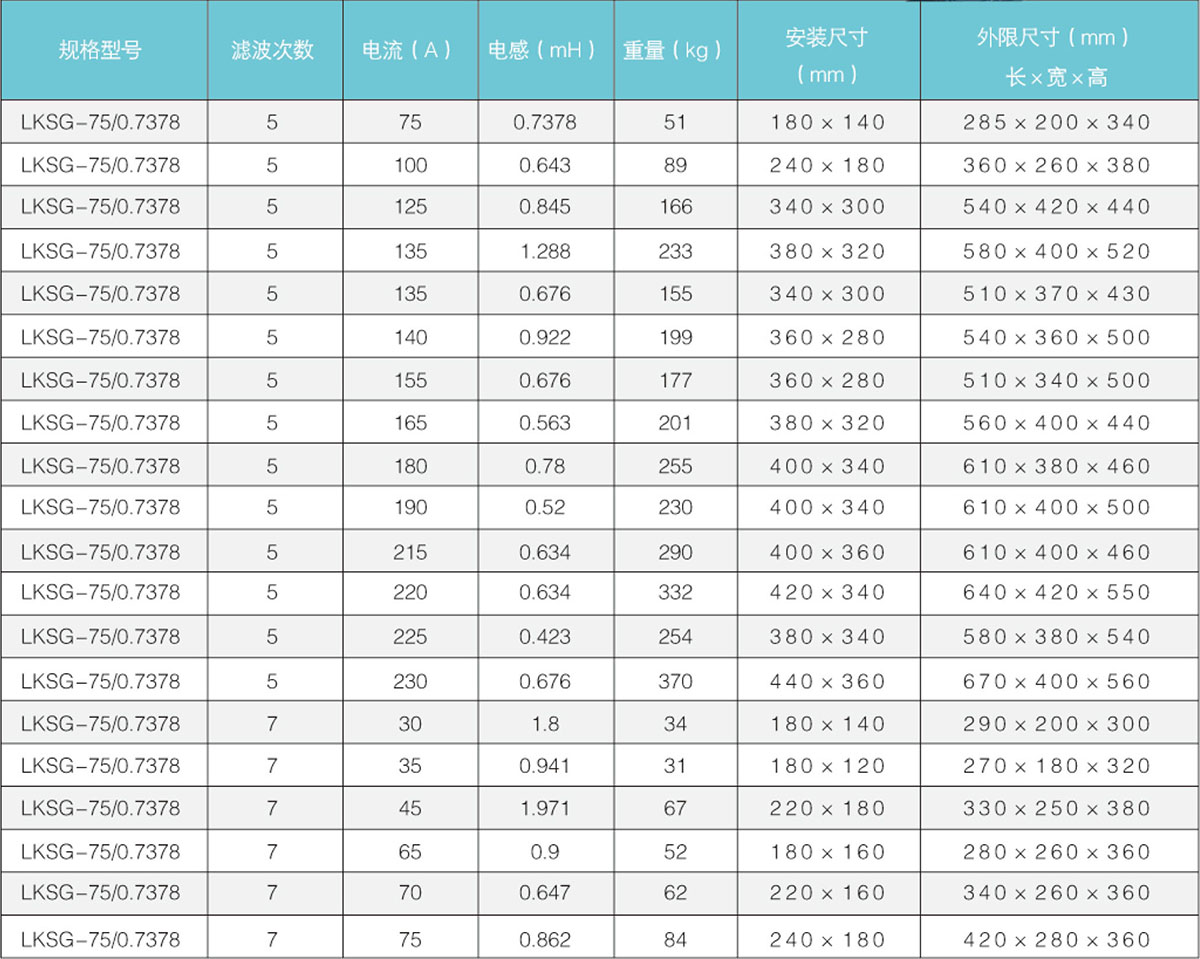

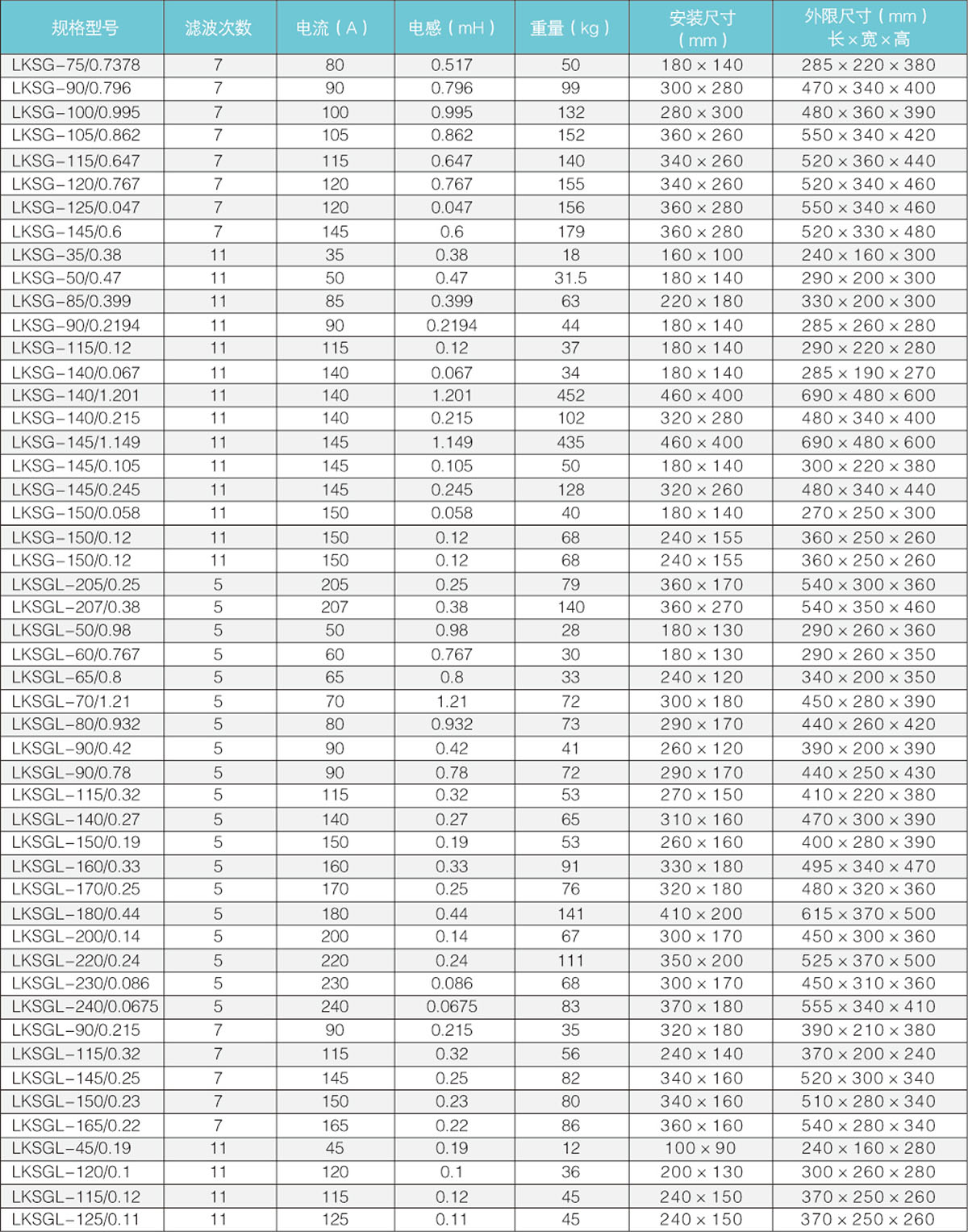

Technical parameters
