Overview
This series is suitable for continuous load test of electrical equipment such as switches, current transformers, diamonds, short-circuit heating, etc. with rated frequency of 50 Hz as ascending and heating. Generally, voltage adjustment is required on the front side of the power supply to achieve stepless voltage regulation on the low voltage side.

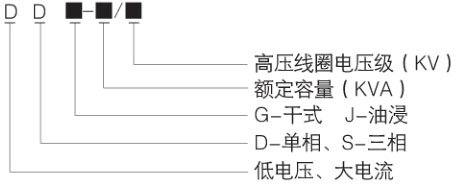

Model Meaning
Ordering Information
1. product model
2. rated capacity
3. high and low voltage, such as ordering special low-voltage transformers can be proposed as a special product.

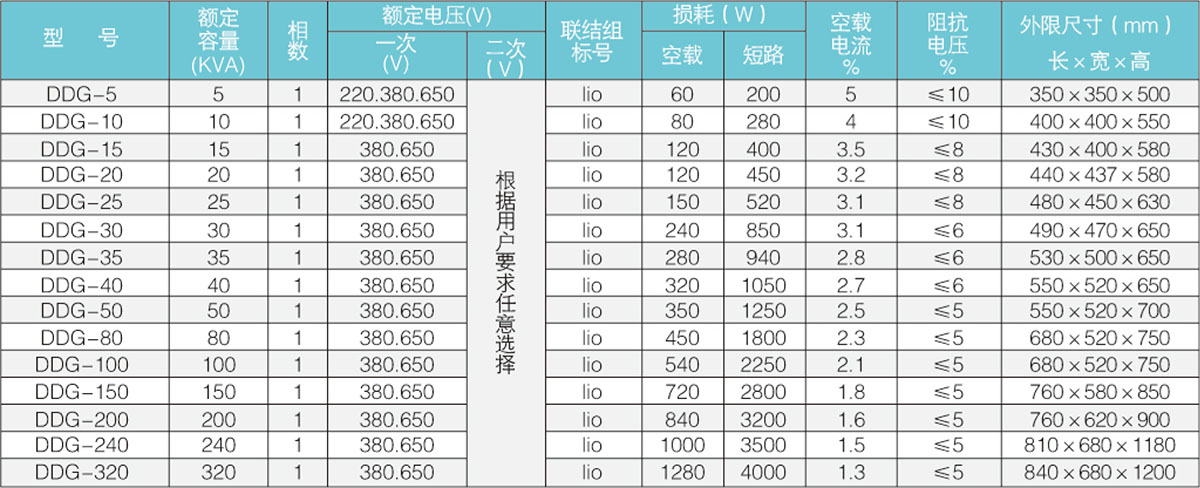

Technical parameters
